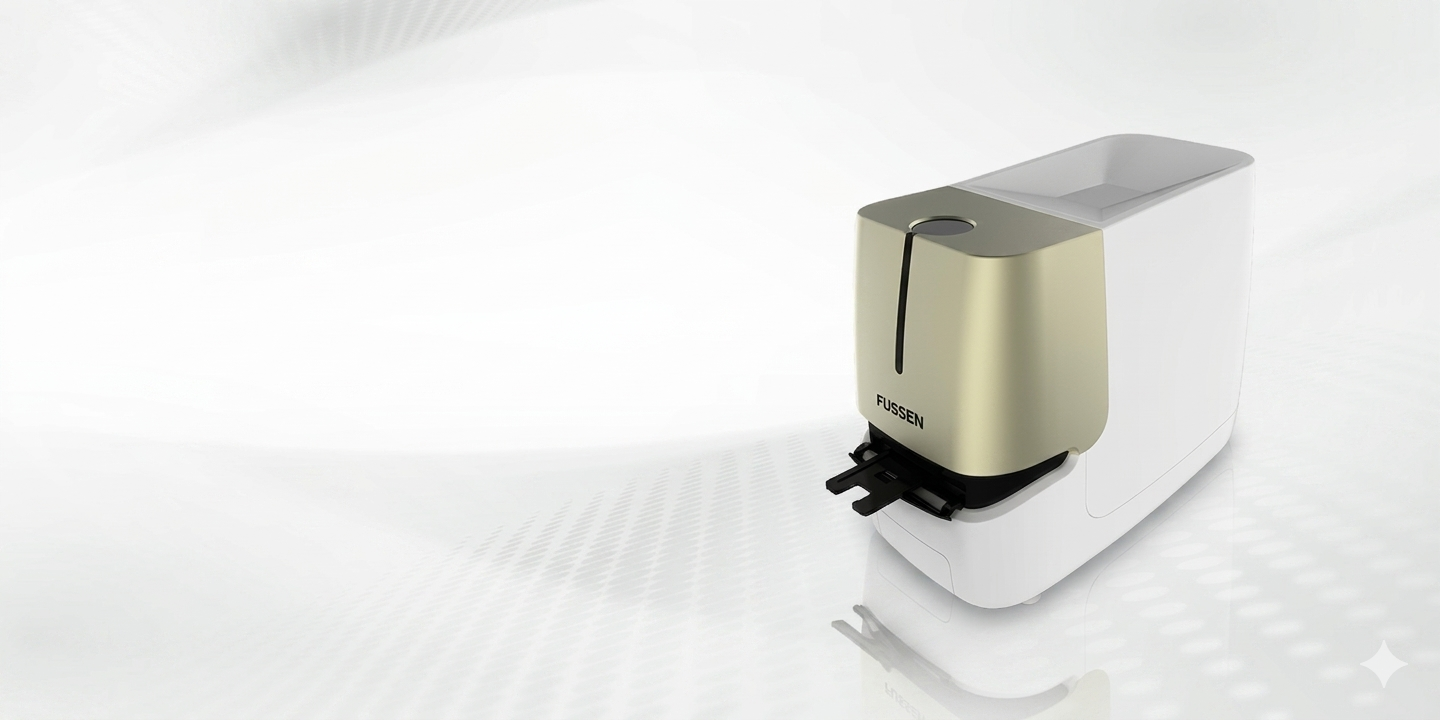

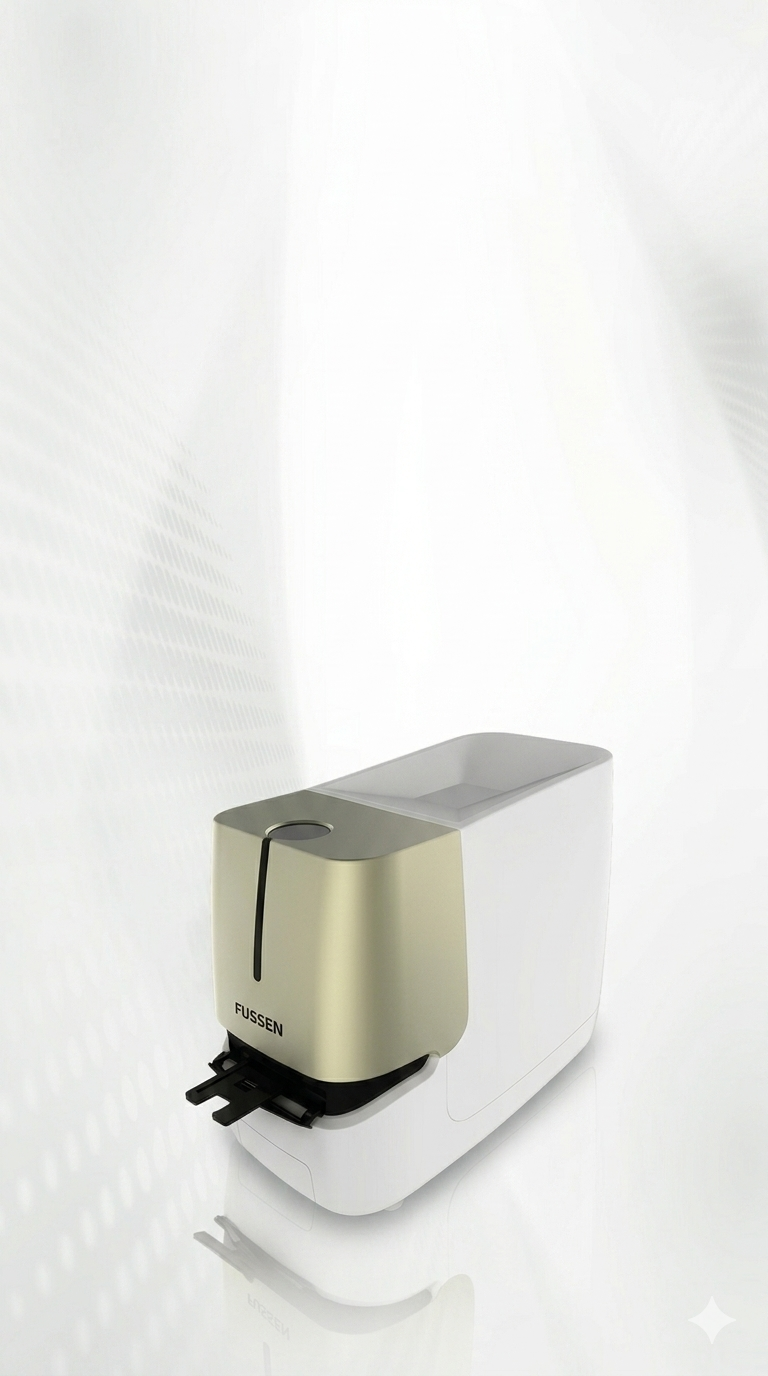

F200 IMAGE PLATE SYSTEM
Compact Design with Smart Performance
PREMIUM IMAGE QUALITY
High-definition images support a wide range of diagnostic and treatment needs.

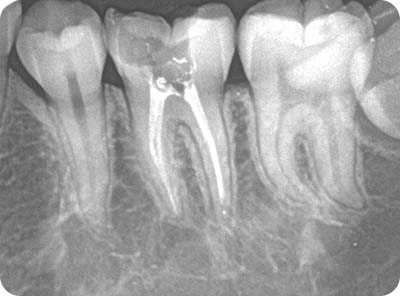

Tooth Decay

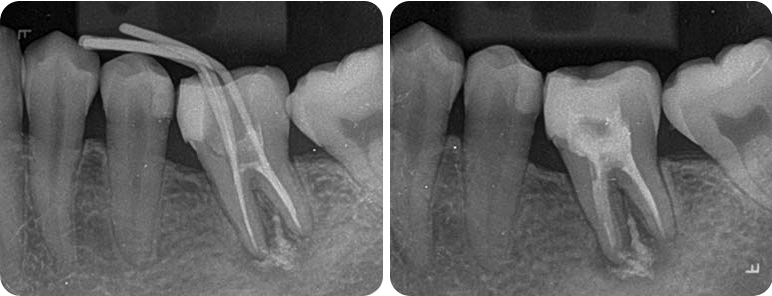

Before and After Root Canal Therapy
Post-implant Healing Assessment
ULTRA-THIN IMAGING PLATES IN VARIOUS SIZES
4 Size Options
Thickness of 0.1mm
Bendable up to 270 degrees
With usage of up to 20 times
22x31mm
Suitable for children
24x40mm
Suitable for adult anterior teeth
31x41mm
Suitable for adult posterior teeth
27x54mm
Suitable for occlusal imaging.
SMART AND FLEXIBLE
Smart Touch Control
Simple operation with the touch button to insert the phosphor plate tray.
Smart Standby
The tray automatically pops out after scanning for easy use next time.
Smart Detection
Automatically recognizes the size of the imaging plate.
Smart Optimization
Automatically adjusts the image for optimal contrast and brightness.
Smart Energy Saving
After the scanner is paused, it automatically switches to energy-saving mode.
Smart Erasure
Automatically clears the phosphor plate after reading.
USER-FRIENDLY OPERATION

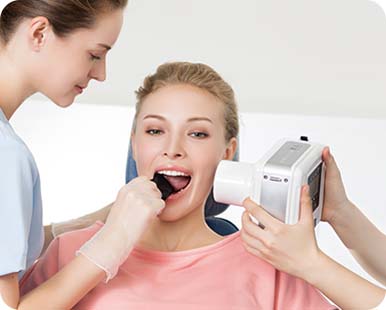

Place the PSP in the correct position in the patient's mouth and acquire with the X-ray unit
Take the PSP out of the sleeve cover
Put the PSP in the machine for reading
TECHNICAL SPECIFICATIONS
| Model | F200 Image Plate System |
|---|---|
| Theoretical Resolution | 12lp/mm |
| Grayscale | 14bit |
| Pixel Size | 35μm |
| PSP Scanning Method | Pallet type |
| Scan Time | < 20s |
| Dimension | 260*167*325mm |
| Weight | 5.2kg |
| Connection | USB 2.0 |
